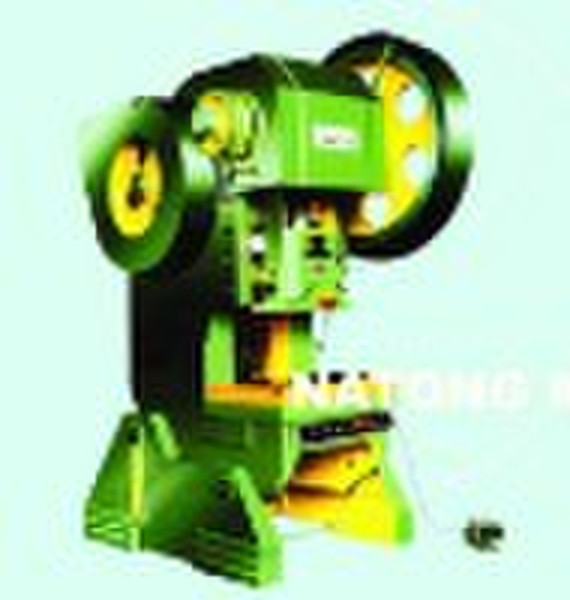

J23 series open back inclinable press
RIMING YUAN
Contact person
Basic Information
Technical data of J23-100T Power press 1.Rated pressure:1000KN; 2.Slide travle:130mm; 3.Travel times:38r/min; 4.Max.die set height:380mm; 5.Die set height adjustment:100mm; 6.Distance from slide block centre tothe frame:380mm; 7.Worktable size:F-BXL-R:710X1080mm; 8.Bottom size of slide:F-BXL-R:370X450mm; 9.Size of the handle hole:Diameterxdepth:60x75; 10.Inclinable angle of body:30 degree; 11.Motor type/power:Y180L-6/15kw; 12.Overall size of the machine:LXWXH:2470x1735x3020mm; 12.Weight:10300kg.
Delivery terms and packaging
Packaging Detail: Iron pallet,Overall sizez:J23-16T:1150*1300*2150mm;J23-25T:1300*1100*2250mm;J23-40T:2700*1500*2100mm;J23-63T:2900*1600*2250mm;J23-80T:3000*1600*2250mm;J23-100T:3200*1600*2500mm.A 40' container can be putted into:40T(4),16T(4),25T(2);or 100T(1),63T(2),25T(2);A 20' container can be putted into 25T(4),40T(1), Delivery Detail: Within 25 days after get the deposit
Port: Shanghai/Ningbo
