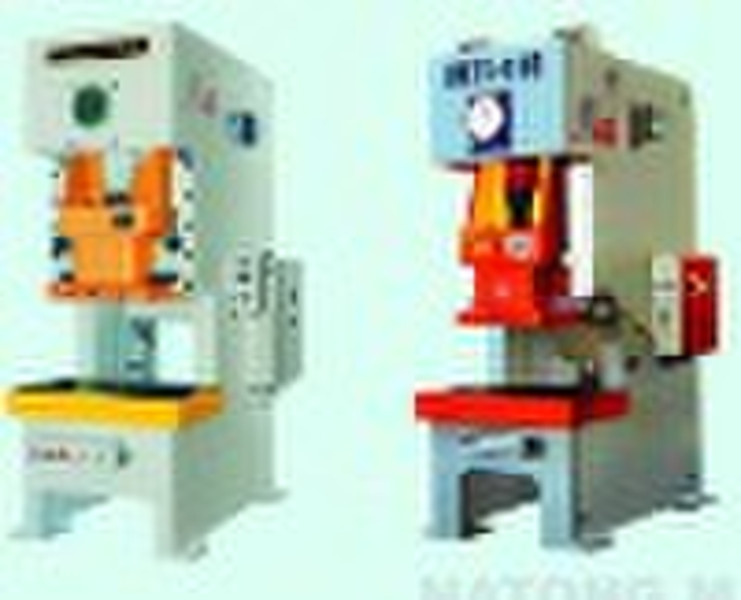

JH21 series press with wet pneumatic friction and

Specifications of JH21-250T Power press 1.Rated pressure:2500KN; 2.Slide travle:250mm; 3.Travel times:30r/min; 4.Max.die set height:500mm; 5.Die set height adjustment:120mm; 6.Distance from slide block centre tothe frame:450mm; 7.Worktable size:F-BXL-R:880X1500mm; 8.Bottom size of slide:F-BXL-R:700X950mm; 9.Size of the handle hole:Diameterxdepth:65x100; 10.Motor model/power:Y200L-6/22kw; 11.Overall size of the machine:LXWXH:2840x1680x3915mm; 12.Weight:23000kg.
